P-H3

FEATURES

• DIMENSION: 360x300x230mm
• WEIGHT: 11kgVOLTAGE:220V /110V, 50/60Hz
• POWER:1500W
• HOUSING MATERIAL: Carbon steel
• HEAT UP TIME: 4min
• CONSUMABLE: FX-HF fog fluid
• FOG FLUID TANK CAPACITY: 5LMAX. FOG OUTPUT: 6000cuft/min
• OUTPUT DURATION: Continuous\FOG OUTPUT ADJUSTMENT: 1-100%
• FAN SPEED ADJUSTMENT: 1-100%
• MAX. FOG FLUID CONSUMPTION: 15ml/min
• POWER CONNECTORS: Power IN
• XLR CONNECTORS: 3-pin XLR IN/OUT
• CONTROL: MANUAL, DMX, Wireless\ DMX CHANNELS: 2

Animations effects:

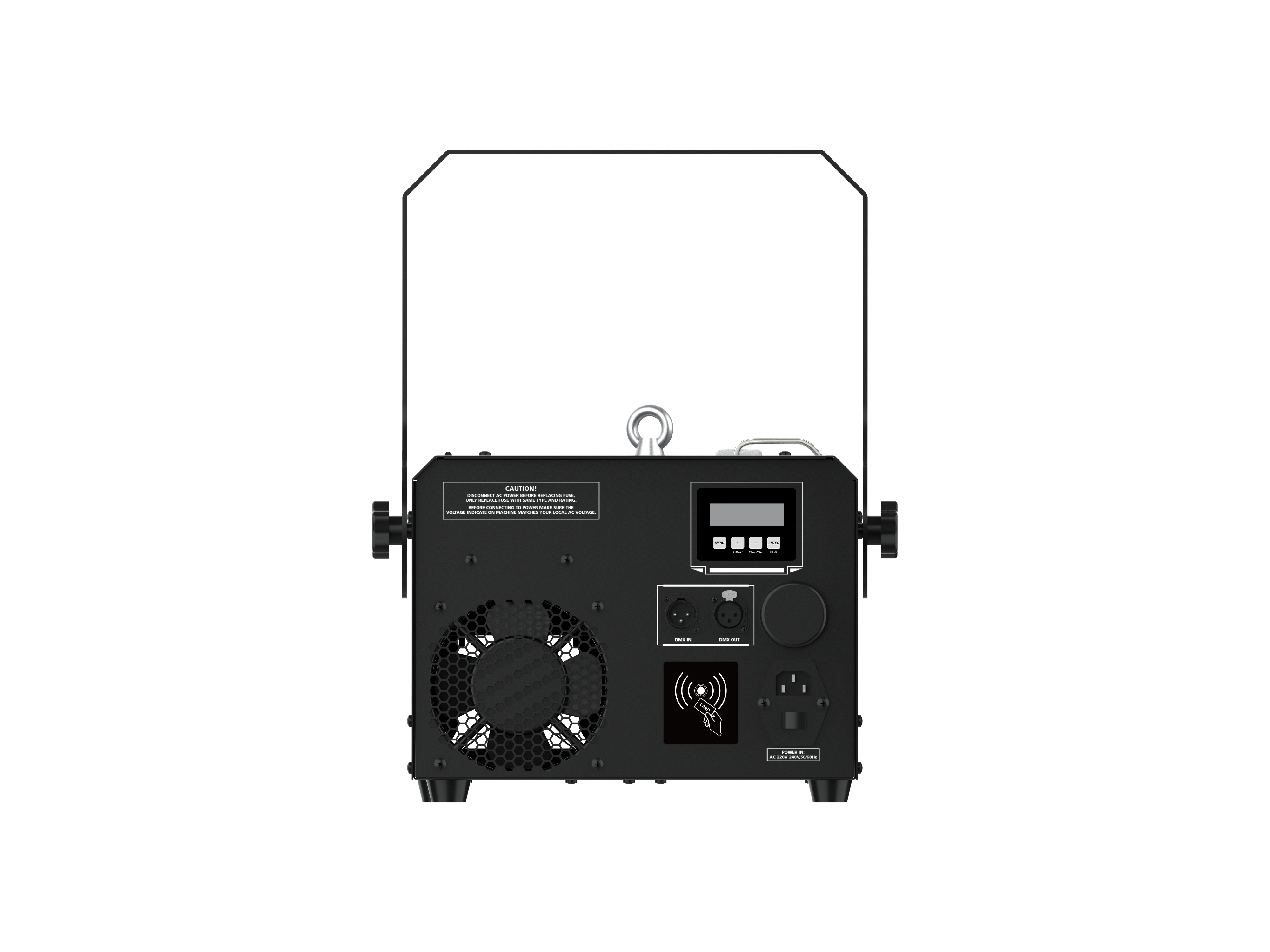

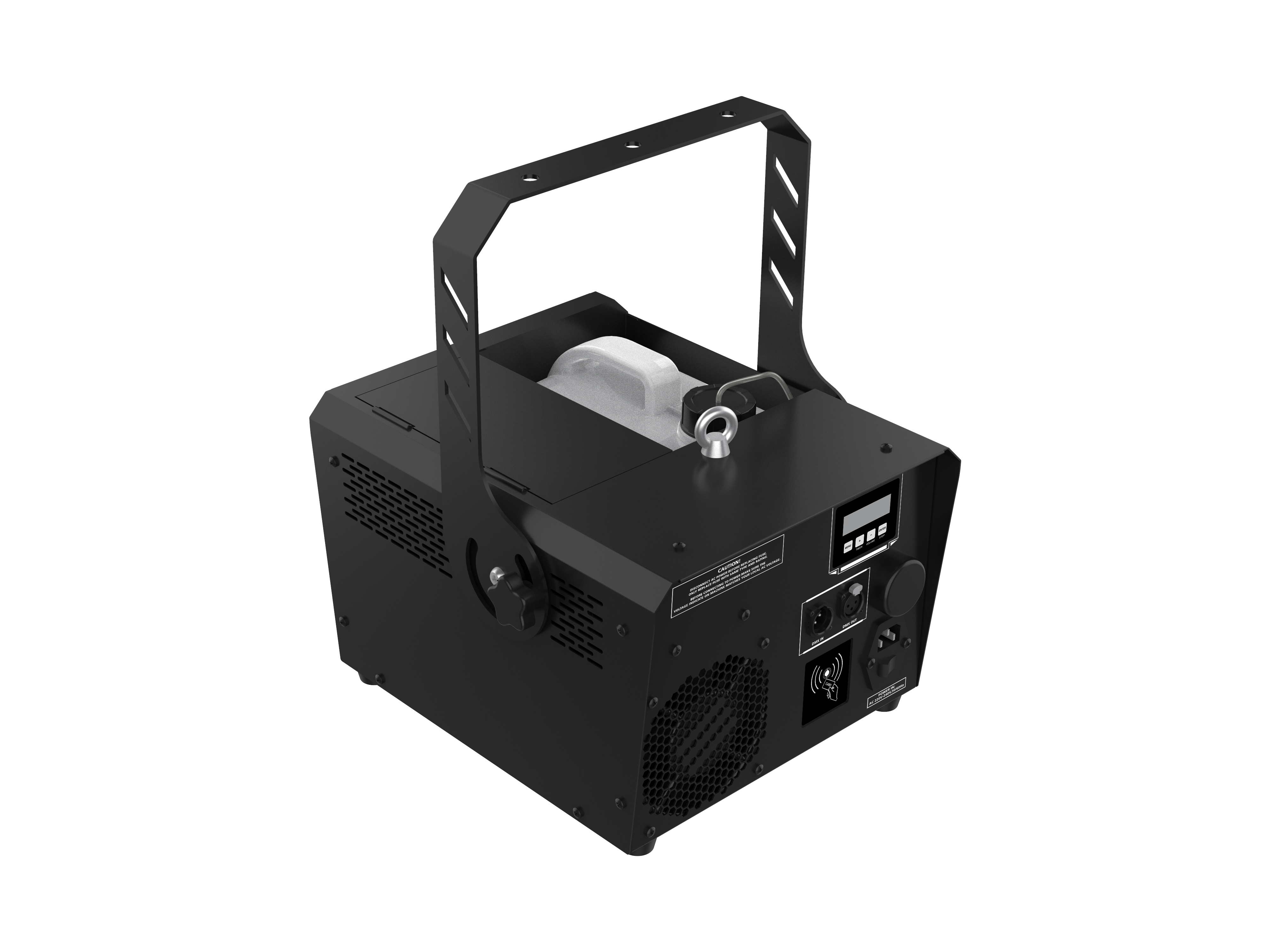

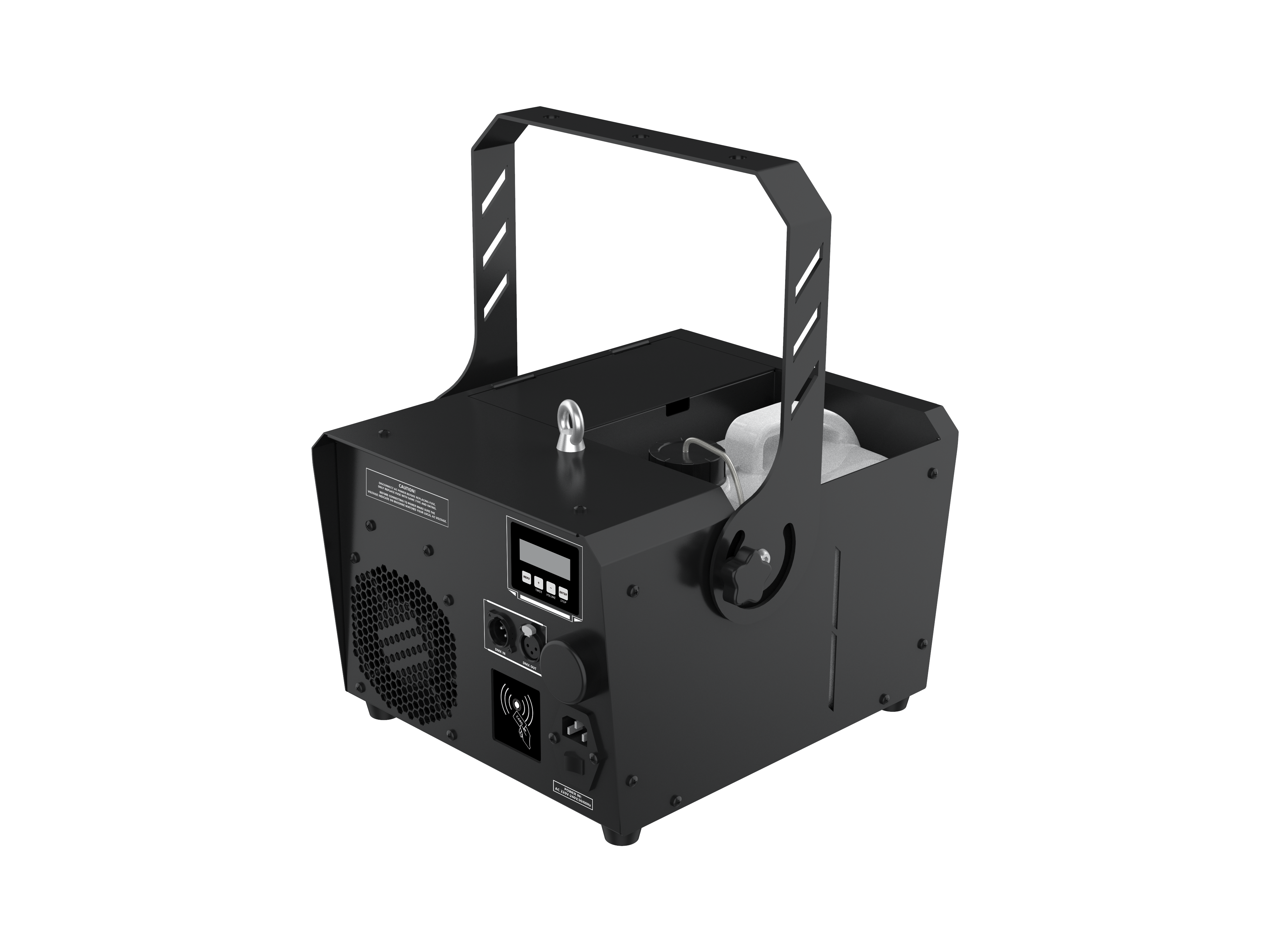

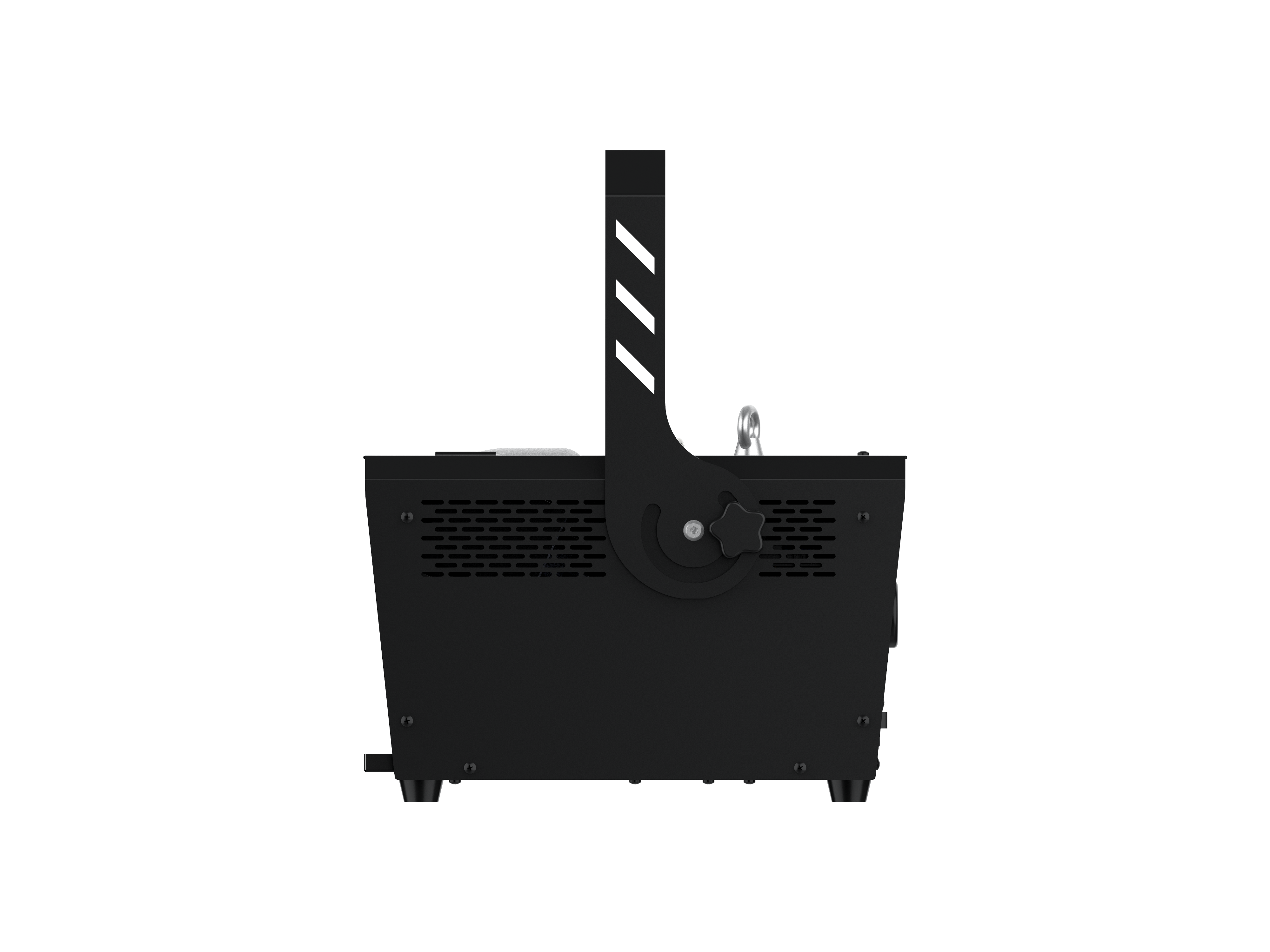

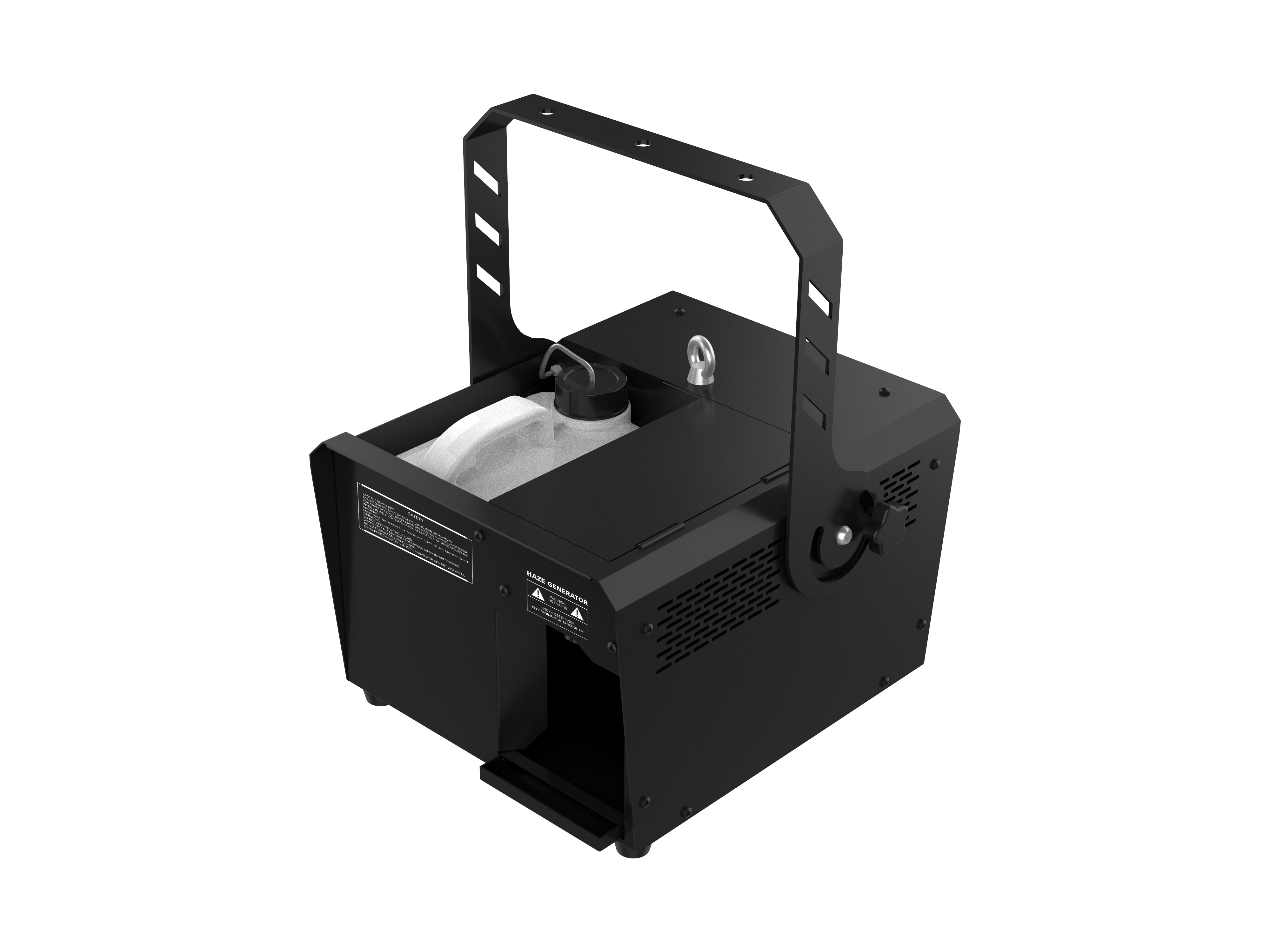

HAZER P-H3 | Professional High-Output Haze Machine

The HAZER P-H3 is a professional-grade, high-performance haze machine designed to meet the rigorous demands of the stage and touring industry. Equipped with a powerful heating system, it features a rapid warm-up time and delivers a massive, continuous haze output.

Unlike standard fog machines, the P-H3 produces an ultra-fine, translucent mist that lingers in the air to create the perfect Tyndall effect, making light beams and lasers vividly visible without obscuring the stage. Built with a rugged carbon steel housing, it is engineered for reliability, low noise, and long-duration operation in professional environments.

key features:

1. Enlarged heating block, stable haze output, uniform haze effect even in low fog outputAnti-fluid drip design
2. Odorless haze output with original fluid
3. DCfan, durable and stable output
4. New generation quiet technology, larger air volume lower noisy
5. 5h continuous working after fill up

\DIMENSION: 360x300x230mm

\WEIGHT: 11kgVOLTAGE:220V /110V, 50/60Hz

\POWER:1500W

\HOUSING MATERIAL: Carbon steel

\HEAT UP TIME: 4min

\CONSUMABLE: FX-HF fog fluid

\FOG FLUID TANK CAPACITY: 5LMAX. FOG OUTPUT: 6000cuft/min

\OUTPUT DURATION: Continuous\FOG OUTPUT ADJUSTMENT: 1-100%

\FAN SPEED ADJUSTMENT: 1-100%

\MAX. FOG FLUID CONSUMPTION: 15ml/min

\POWER CONNECTORS: Power IN

\XLR CONNECTORS: 3-pin XLR IN/OUT

\CONTROL: MANUAL, DMX, Wireless\ DMX CHANNELS: 2

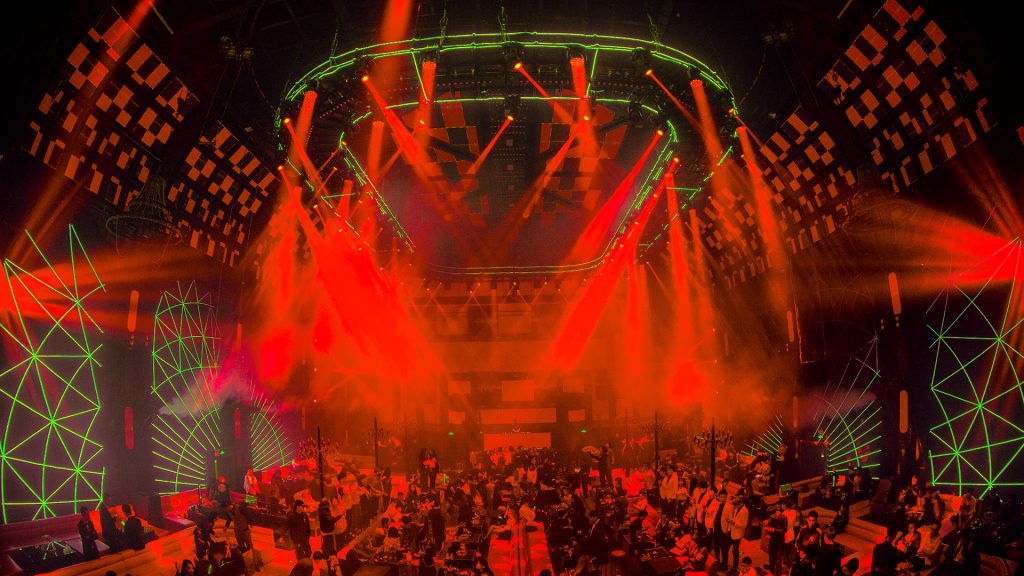

Applications

The P-H3 is the preferred atmospheric solution for venues where light beam definition and low-noise operation are critical:

Theaters & Opera Houses: Delivers a subtle, uniform haze that enhances lightingwithout distracting the audience or the performers.

Concerts & Live Festivals: The 150OW high-output ensures rapid coverage of largestages to showcase complex laser shows and moving lights.

TV Studios & Film Sets: Produces “clean” haze that does not leave oily residue onexpensive camera lenses or sensitive equipment.

High-End Clubs & Lounges: Creates a sophisticated atmosphere, adding depth anddimension to the venue’s interior design and lighting.

 Corporate Events: Perfect for product launches and gala dinners where a professional,dry mist effect is required.

Q1: What is a haze machine? A haze machine is a professional atmospheric effects device that produces a continuous, ultra-fine mist suspended evenly in the air. Unlike a fog machine, which generates dense, low-lying clouds, a haze machine fills the entire air volume of a venue with a thin, almost invisible layer of particles. This suspended haze has no visible presence on its own — it only becomes apparent when light passes through it, revealing beam paths, laser lines, and atmospheric depth that would otherwise be invisible to the audience.

Q2: What type of fluid does the P-H3 use?  The p-H3 is designed to work exclusively with FX-HF Haze Fluid.Using high-quality fluid ensures the finest mist particles and prevents the heating core from clogging.

Q3: How long will a full tank last?

At the maximum consumption rate (15ml/min), a full tank provides approximately 5.5 hours of continuous output, in most event scenarios where output is set to amedium level, a single tank can last for several days of shows.

Q4: Is the machine quiet enough for a studio environment?

Absolutely. The P-H3 features low-noise fan technology. It operates quietly enough for sound-sensitive environments like recording studios or theaters.
