Linearix™ Intelligent Linearity Digital Driver
BeamSync™ Technology
Minimized Beam Divergence
Colour Balance Display Mode
High-speed Scanning & Distortion Correction
Extremely Light-weighted Design
New Breakthroughs on SHOWVEN 3rd generation laser.
Linearix™ Intelligent Linearity Digital Driver
Built-in dynamic nonlinear compensation ensures perfectly linear RGB output, enabling precise color mixing and stable ultra-low power performance.
BeamSync™ Technology
Through high-precision optical collimation of each diode, it ensures uniform divergence and consistent far-field spots.This creates a razor-sharp square beam with zero monochromatic bleeding, delivering unparalleled visual clarity.
Minimized Beam Divergence
Exceptional precision：0.8mrad (10-20W), 0.9mrad (30,40W), and 1.05mrad (60W). Ensures crisp, powerful visuals over vast distances.
Colour Balance Display Mode
One-click calibration to lock in the optimal color temperature for any scene. Powered by Linearix™ technology, it maintains superior color mixing and precise control even in white balance mode.
High-speed Scanning & Distortion Correction
Our self-developed galvanometers reach 40kpps (10-20W), 35kpps (30W), and 32kpps (40-60W). Built-in algorithms effectively compensate for optical distortion, ensuring precise image rendering.
Completely isolation of cold and hot sides, more efficient cooling effect to the laser compartment, ensuring cooling temperature inside laser module even in an ambient temp. of up to 45 degrees, greatly extends the service life of LD.
Optimized for strength and cooling while significantly reducing weight.
VIDEO
Animations effects:
Beams effects:

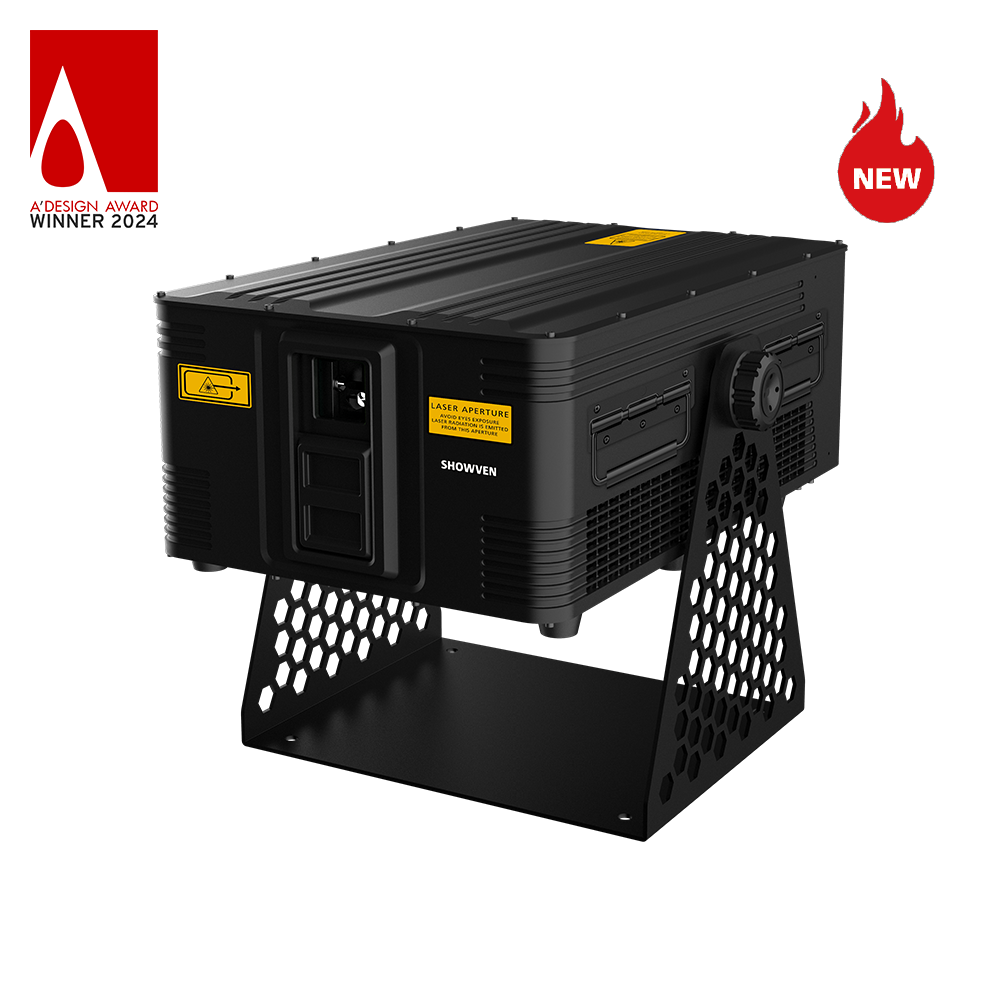

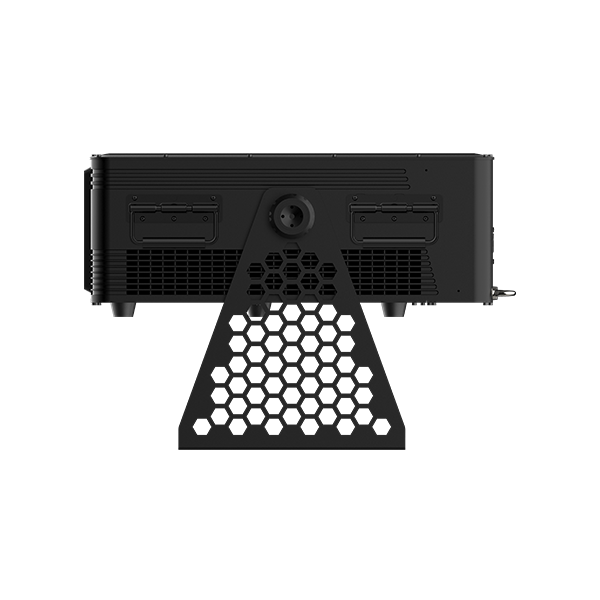

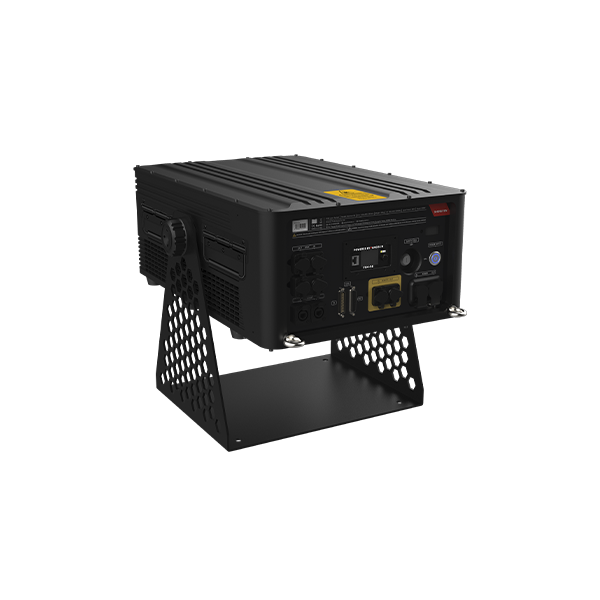

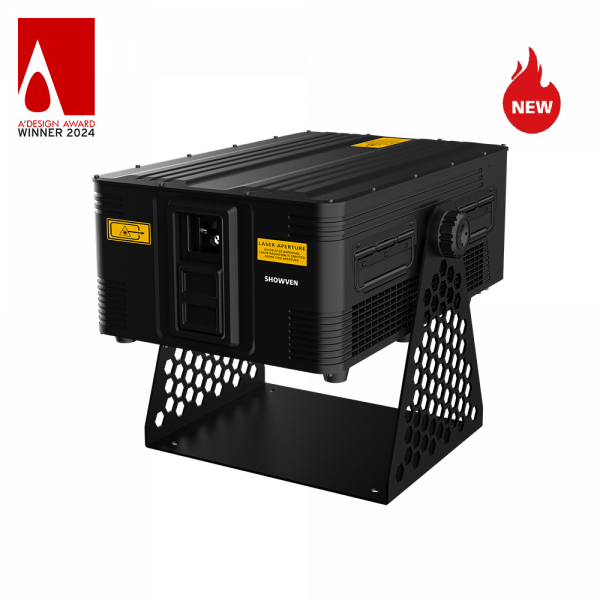

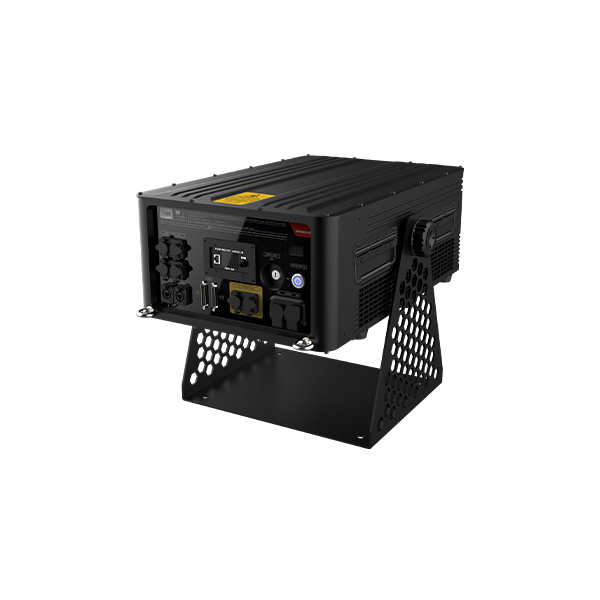

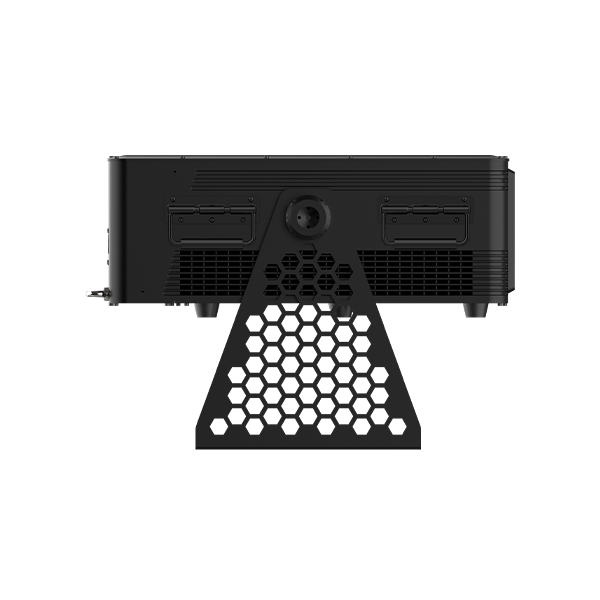

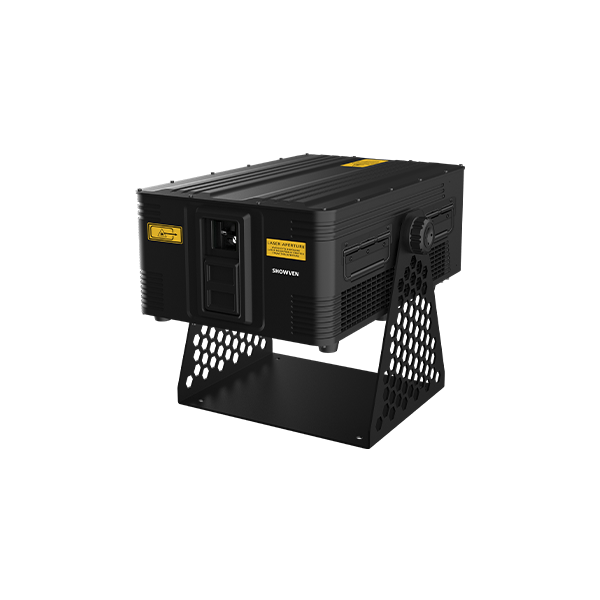

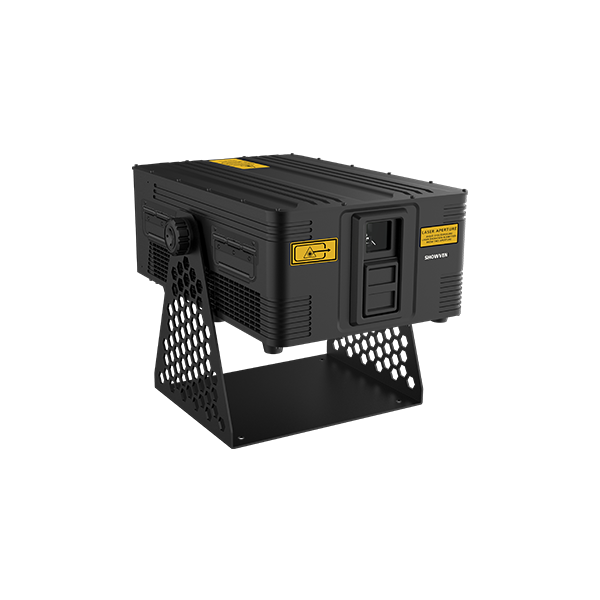

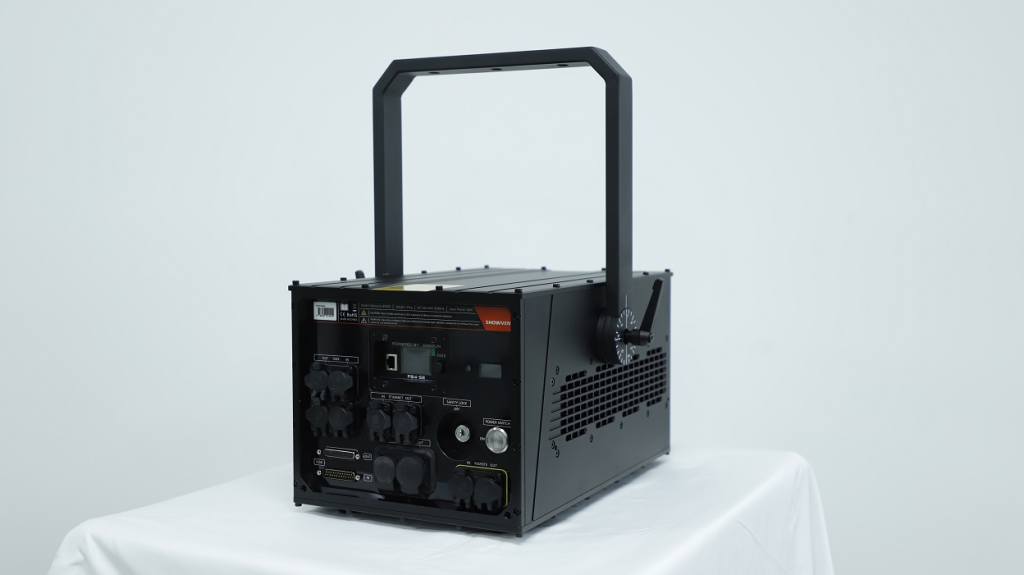

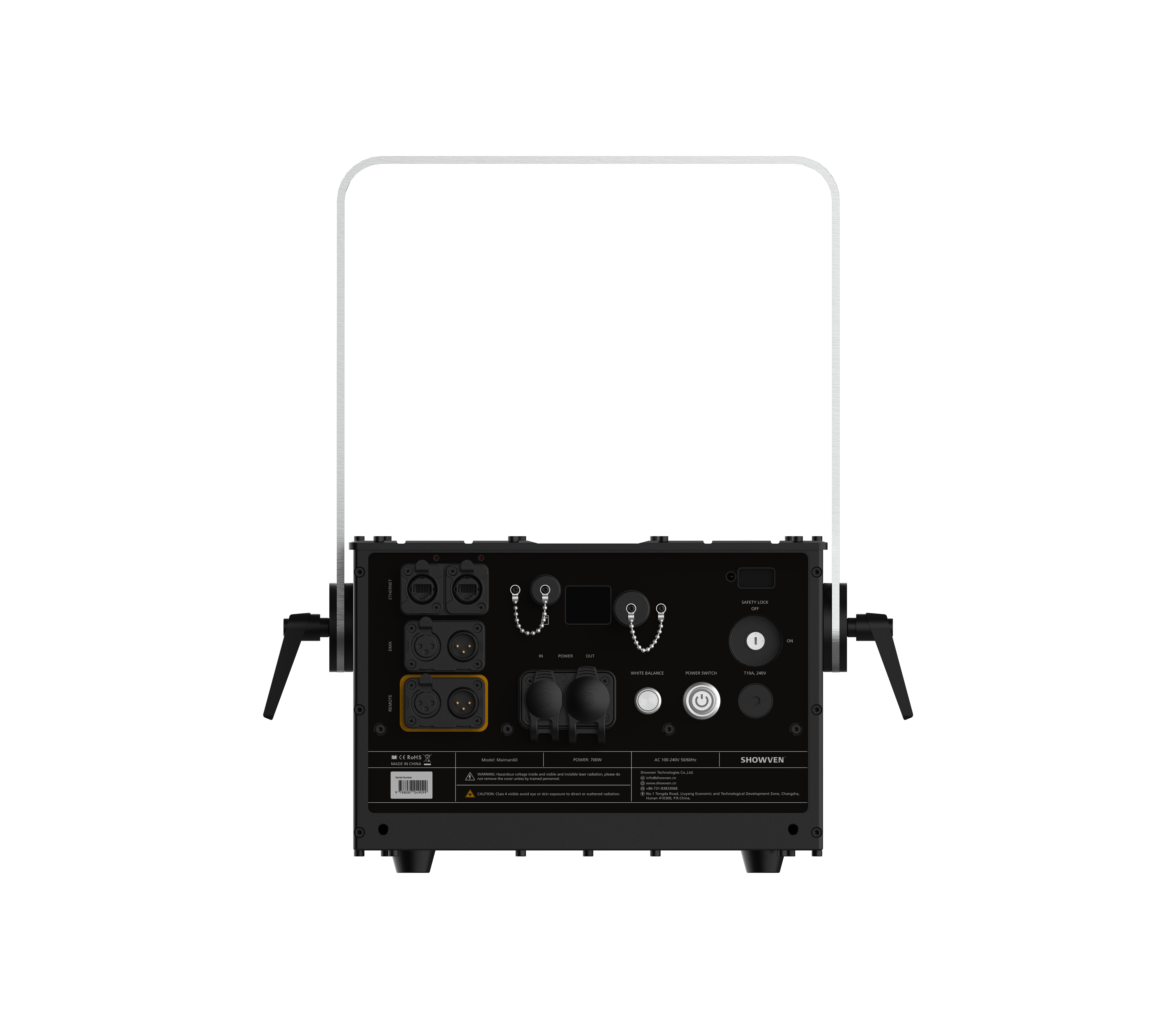

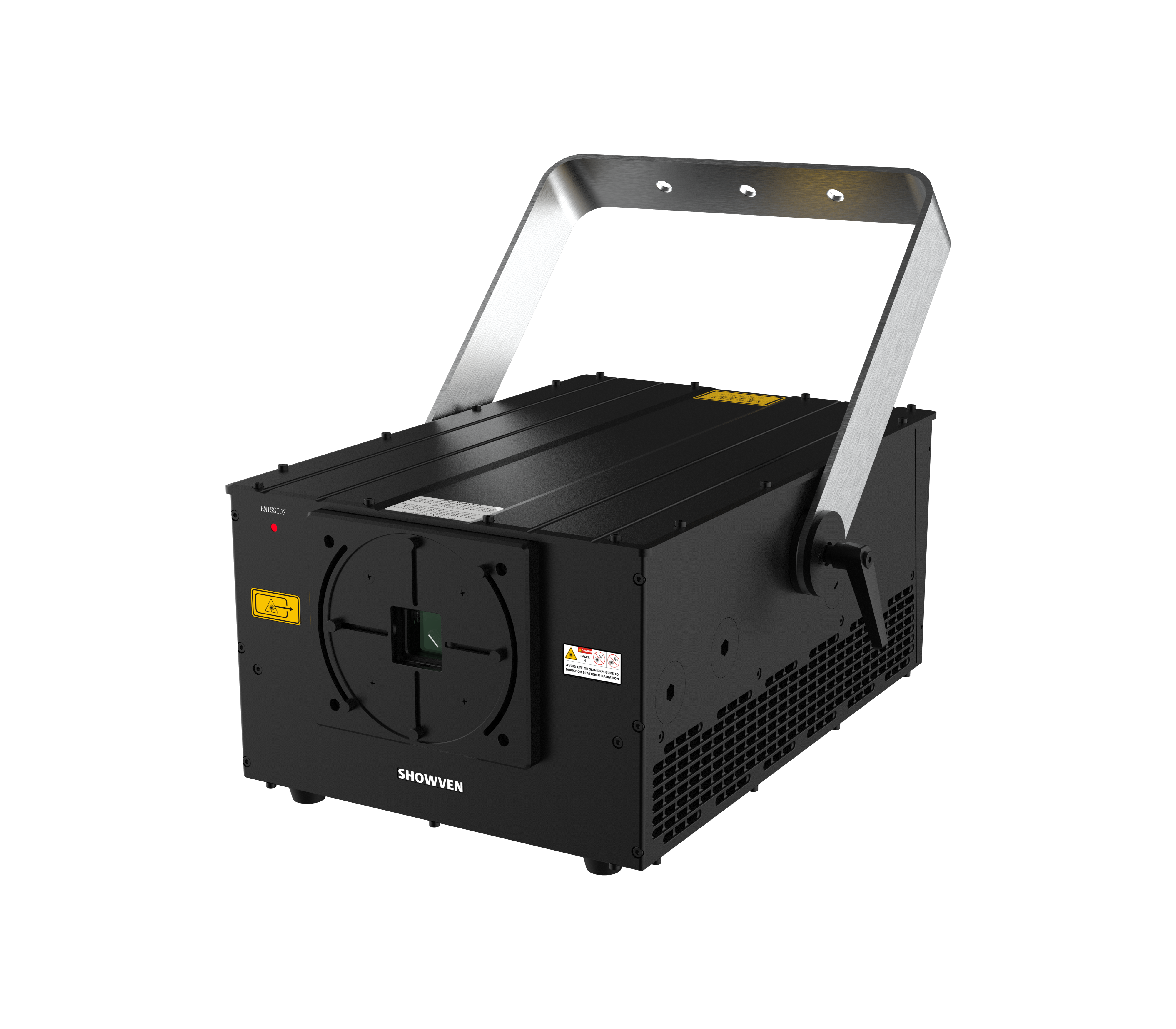

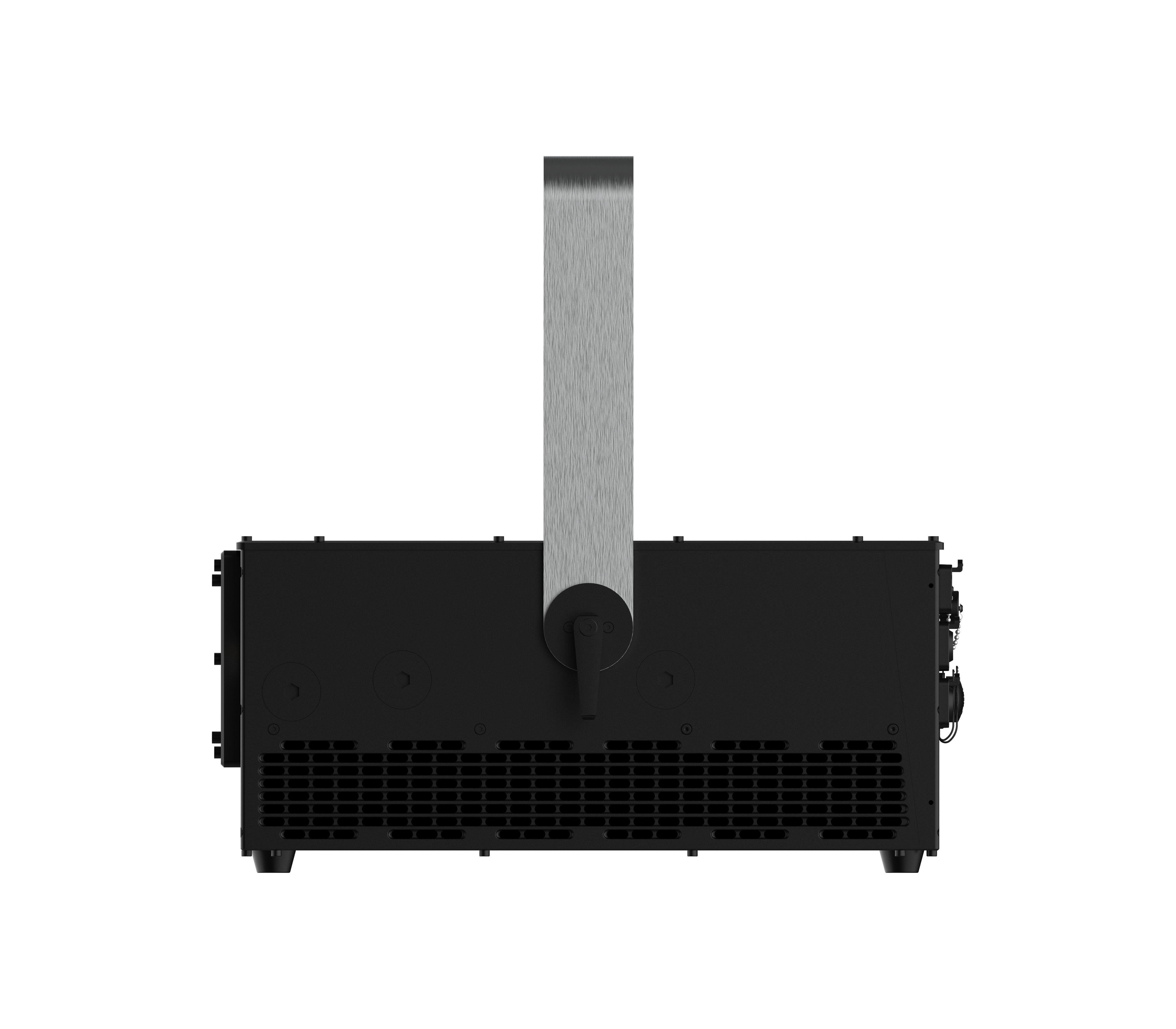

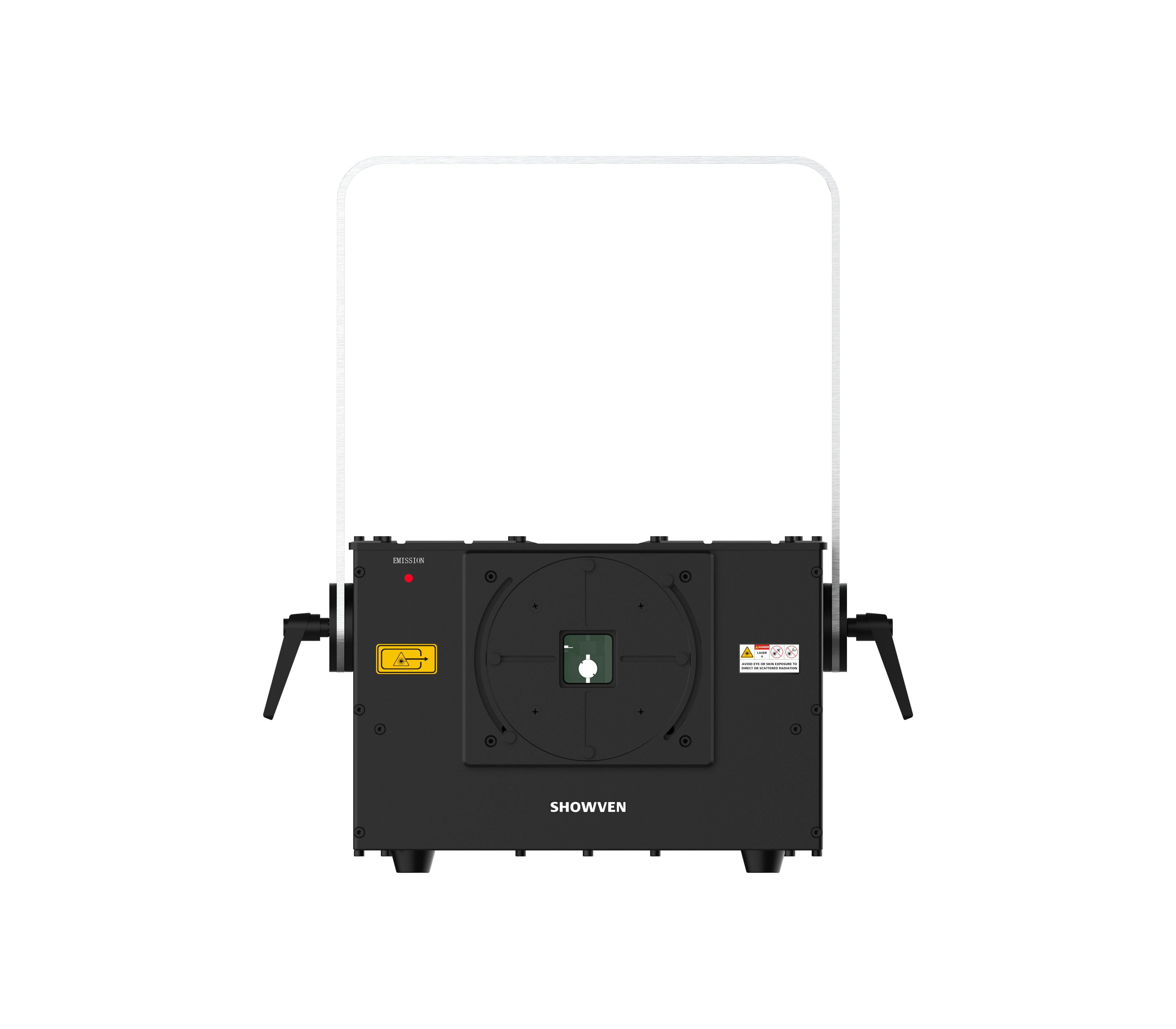

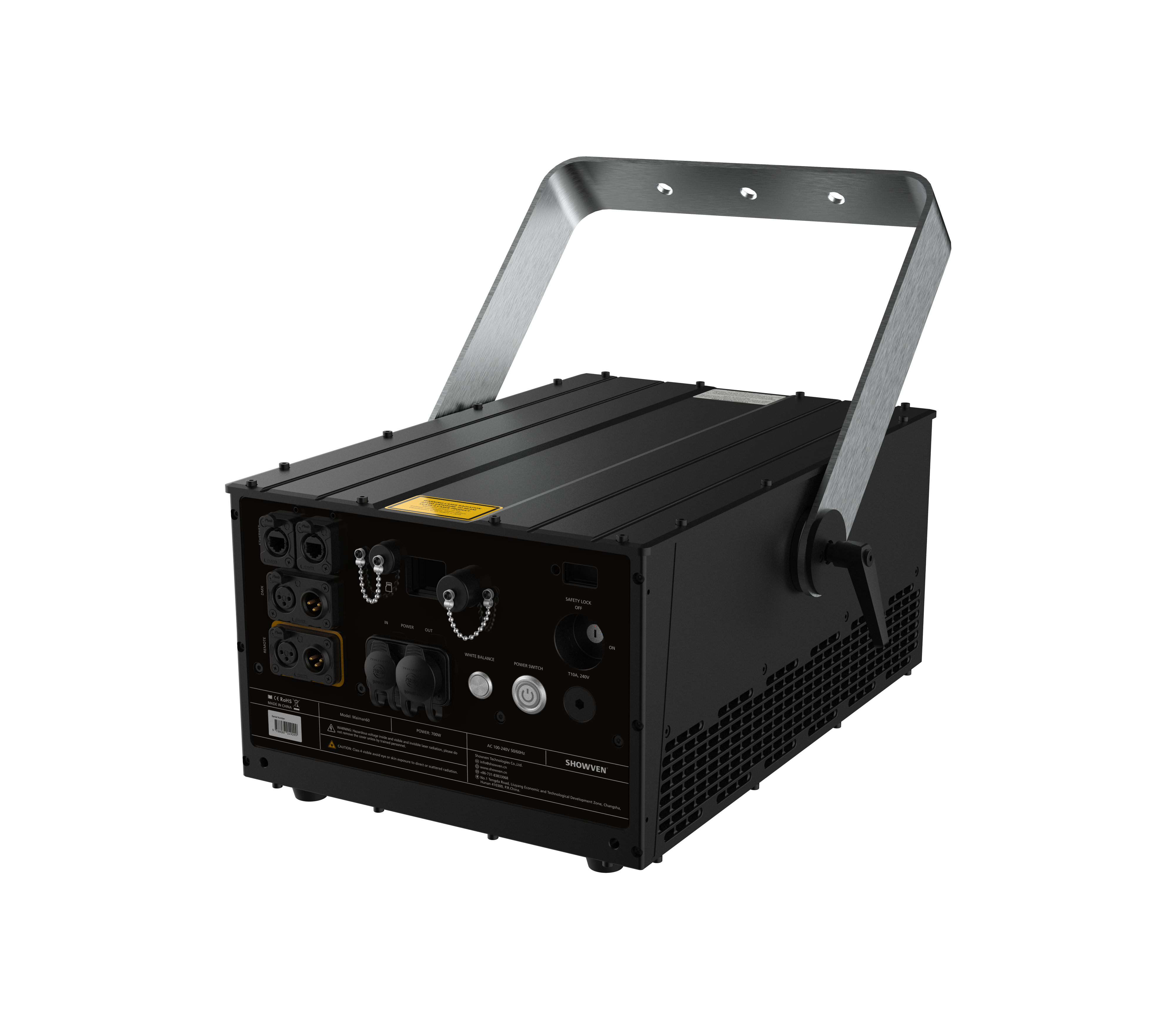

Product details:

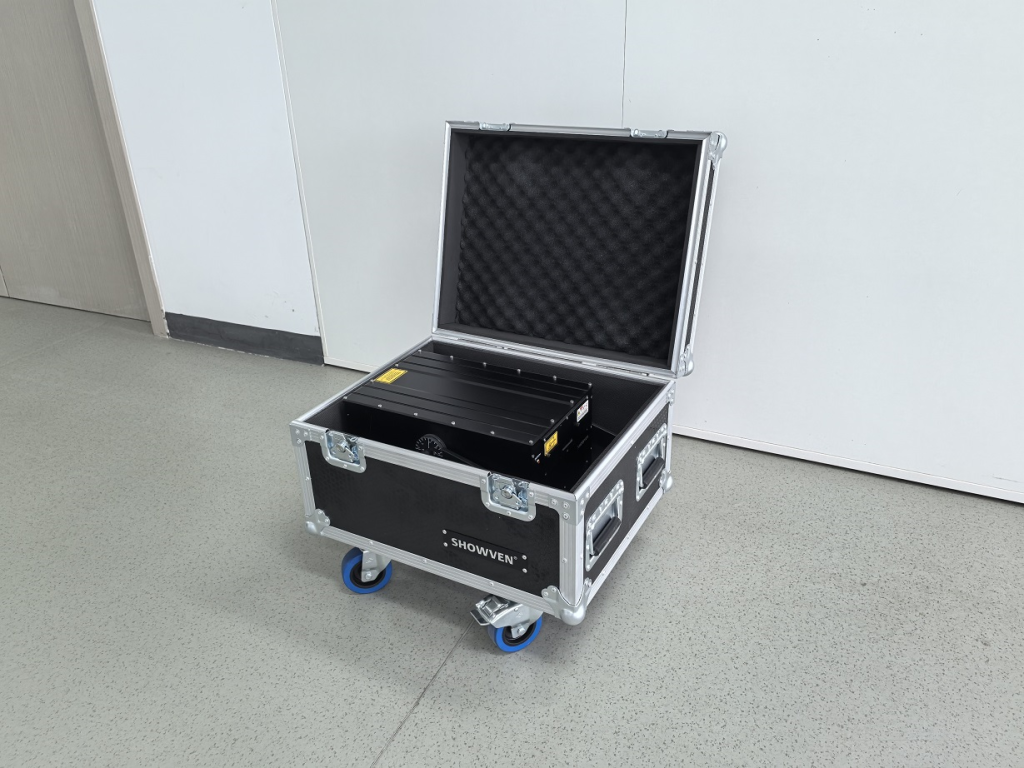

Package showcase:
| Power Supply: | AC100-240V 50/60Hz |
| Output (max): | 60W |
| R module: | Mistsubushi 635nm |
| G module: | Nichia 525nm |
| B module: | Nichia 455nm |
| Scanning System: | 32Kpps@8°，Max Scan angle 60° |
| Beam Size: | 7.5×8mm |
| Beam Divergence: | 1.05mrad |
| Analogue modulation: | 1ooK, Analog/TTL |
| IP level: | IP65 |
| Cooling System: | Enhanced TEC |
| Work Temp.: | -20-45°C |
| Weight(without handle): | 21kg |
| Dimension: | 458×316×228mm |
| System Control: | Ethernet, DMX, ILDA, Auto, SD card, Sound, FB4(optional) |
| Compliant with: | CE |
| Safety Features: | Safety Switch Key, Remote Emergency Stop System (can be connected in daisy chain), scan-fail safety etc. |
A sky laser is a powerful laser system used to project beams of light into the sky for promotional or celebratory purposes, also called architectural lasers or landmark lasers. They create highly visible, long-distance light shows that can be seen for miles and are commonly used at events, festivals, or to highlight landmarks. Unlike a laser pointer, these systems are high-powered and designed for large-scale outdoor visual effects.
Sky lasers are often used to create large-scale visual displays that can be seen from miles away.
At major music festivals, for instance, they serve as a key visual feature—projecting complex aerial patterns that move with the beat of the music and fully draw the audience into the experience.
In advertising and landmark events, sky lasers might project a company logo onto the side of a skyscraper during a product launch or light up a historic monument with a colorful, dynamic show.
Nightclubs also make use of them, often with a single, high-powered green beam acting as a beacon to guide guests from far distances.
This product is an ideal choice for professional sky laser lighting due to its high-power output, robust construction, and advanced feature set.
Its maximum 60W output, combined with an extremely low beam divergence of less than 1.5mrad, ensures that the laser beam remains powerful and highly visible over long distances, which is essential for creating an impactful sky show.
The durable design, featuring an IP65 rating and a wide operating temperature range of -20-40℃, makes it perfectly suited for continuous, all-weather outdoor use. The system also includes professional-grade components like a high-speed 25K scanning system for dynamic animations, TEC cooling for stable operation, and a range of control options including industry-standard ILDA and Ethernet.
Furthermore, comprehensive safety features, such as a remote emergency stop and scan-fail safety, ensure the system’s compliance with safety regulations and reliable operation.
Showven Laser is a professional sky laser factory from China. If you want to present a professional sky laser show, contact us now.
1. Can these laser lights be used for building?
Yes. The Maiman60 can be used on buildings, either as a permanent installation or for event lighting.
2. What’s the warranty on this laser?
All Maiman series lasers come with a standard 1-year warranty covering manufacturing defects and hardware issues.
